Brand: Schneider Electric
Features:
- USES: This DIN rail mounted soft starter powers simple machines such as conveyors, small cranes, pumps, fans, compressors, & belt-driven machinery; It provides smooth starting for your machinery, avoiding mechanical stresses & extending their service life
- QUIET OPERATION: Progressive start limits the starting and stopping noise of motors; Reduces hearing discomfort for operators on the workfloor; It features an Integrated bypass, this reduces noise and decreases heat dissipation
- COMPATIBILITY: Soft starter can feed single or 3-phase asynchronous motors with a rating up to 25A; It can be used for a motor rated power up to 11kW or 15hp for 3-phase (110V to 480V AC) and up to 2.2kW for single phase (110V to 230V AC); CE Marking
- SMALL AND VERSATILE: One of the smallest soft starters on the market; it can be installed nearly everywhere; Simple setup with only 2 settings; Possible to configure by non-specialists
- ADDITIONAL INFO: Dimensions – 4.88 in (124 mm) H x 1.77 in (45 mm) W x 5.16 in (131 mm) D; Weight – 0.77 lb(US) (0.35 kg); Covered by 18 month warranty; LED lights indicate when starter is powered up (green) & when it has reached nominal voltage (yellow)
Package Dimensions: 54x172x410

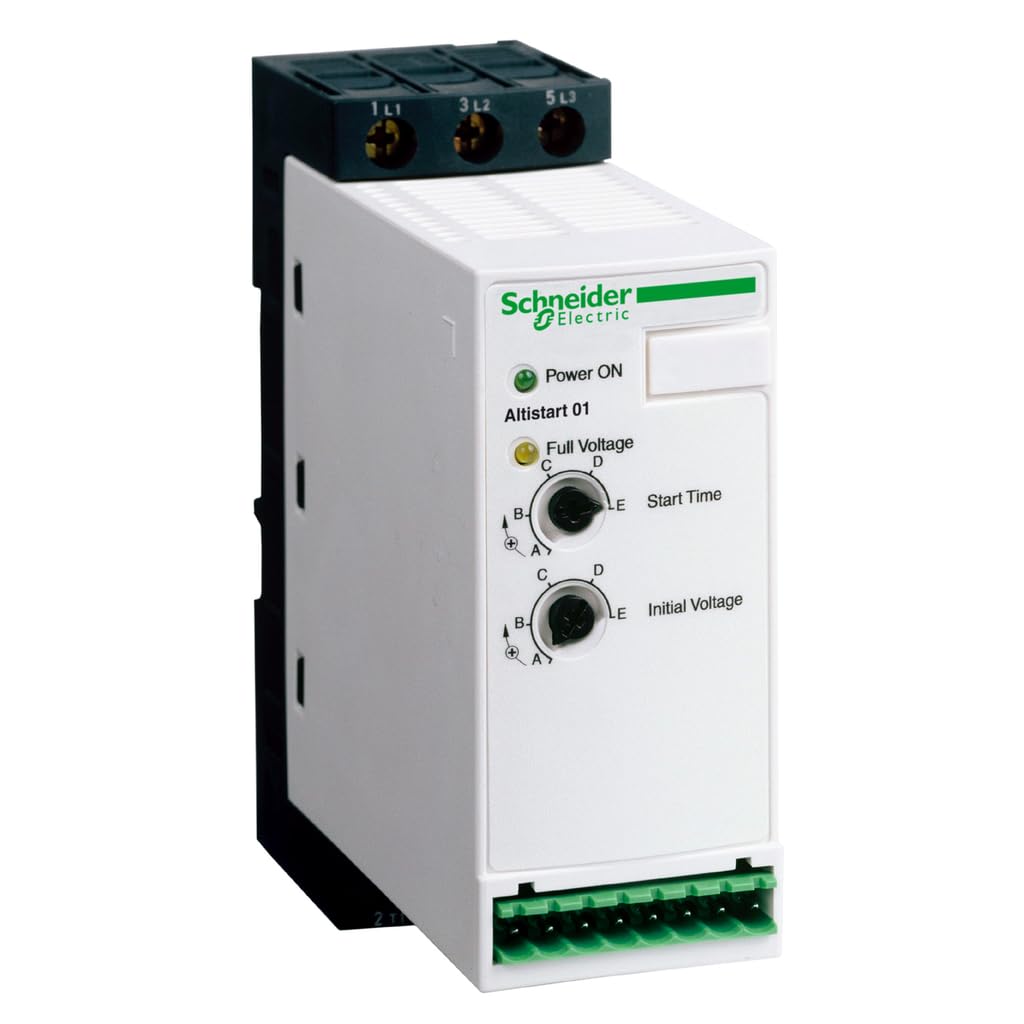

Details: This Altistart 01 soft starter is DIN rail mounted and can feed single or 3-phase asynchronous motors with a rating up to 25A. This Altistart 01 can be used for a motor rated power up to 11kW or 15hp for 3-phase (110V to 480V AC) and up to 2.2kW for singl
